Polywire plus
Product information
Application
An extremely flexible transparent hose for use where full vacuum performance is required while monotoring the contents of the hose. Ideal for use with most foodstuffs, cosmetics, beverages, and a wide range of chemical solutions. Also suitable for lubricating oils and animal fats. FDA grade.
Temperature range: 150F to 1500F (-100C to 650C).

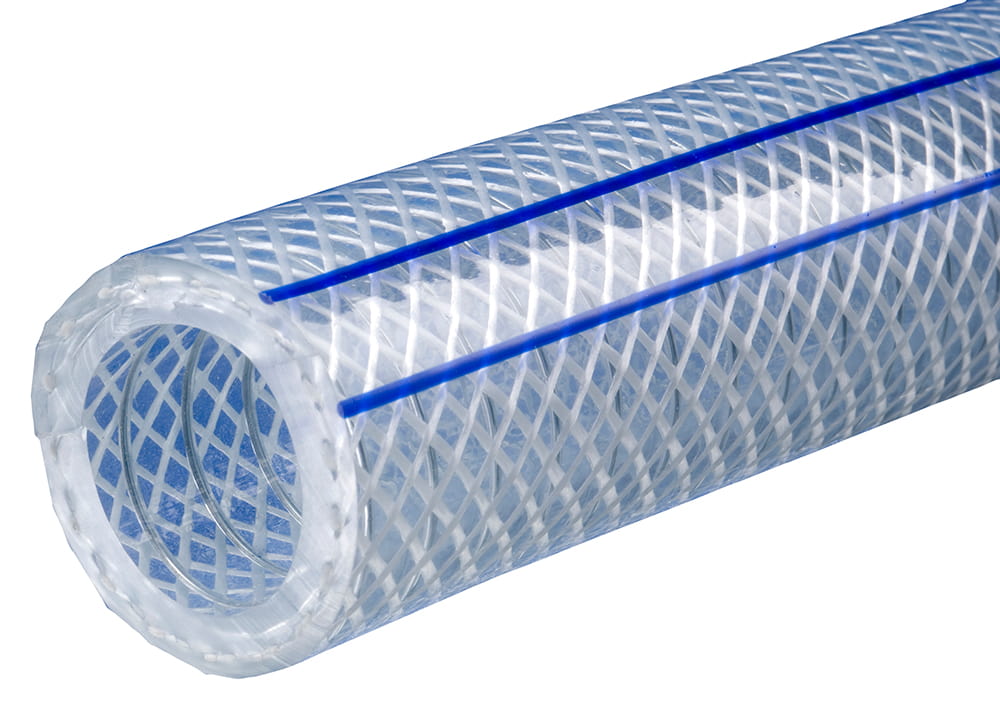

Construction
Tube - Smooth clear PVC. Reinforcement – High tensile yarns with spring steel wire helix.
Cover - Smooth clear PVC.
| PRODUCT CODE |
SIZE | STANDARD PACKAGE |
MAX. W.P. P.S.I. |
VACUUM RATING ("HG) |
RADIUS OF CURVATURE MINIMUM |
APPROX. WEIGHT LBS./FT. |
|
|---|---|---|---|---|---|---|---|
| I.D. | O.D. | ||||||
| 4.K7300-005 | 1/2 | 0.906 | 25'/50'/100' | 250 | 29 | 2,0" | 0,26 |
| 4.K7300-007 | 3/4 | 1,196 | 25'/50'/100' | 225 | 29 | 2,5" | 0,40 |
| 4.K7300-010 | 1 | 1,464 | 25'/50'/100' | 225 | 29 | 3,5" | 0,53 |
| 4.K7300-012 | 1 - 1/4 | 1,780 | 25'/50' | 175 | 29 | 4,5" | 0,74 |
| 4.K7300-015 | 1 - 1/2 | 2,030 | 25'/50' | 175 | 29 | 5,5" | 0,86 |
| 4.K7300-020 | 2 | 2,600 | 25'/50' | 150 | 29 | 7,0" | 1,28 |
