HG
Product information
Application

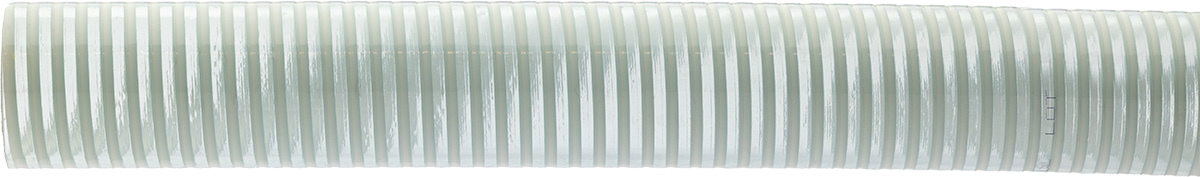

Economical heavy duty water suction hose.
Temperature range: -130F to 1580F (-250C to 670C).
Construction
Tube - Flexible clear PVC, smooth bore. Reinforcement - Rigid PVC helix.
Cover - Smooth O.D.
PRODUCT CODE |
SIZE | STANDARD PACKAGE |
MAX. W.P. P.S.I. |
VACUUM RATING ("HG) |
RADIUS OF CURVATURE MINIMUM |
APPROX. WEIGHT LBS./FT. |
|
---|---|---|---|---|---|---|---|
I.D. | O.D. | ||||||
1.112CL012 | 1 - 1/4 | 1,50 | 100' | 80 | 29,8 | 3,0" | 0,29 |
1.112CL015 | 1 - 1/2 | 1,79 | 100' | 70 | 29,8 | 3,0" | 0,39 |
1.112CL020 | 2 | 2,32 | 100' | 65 | 29,8 | 4,0" | 0,63 |
1.112CL025 | 2 - 1/2 | 2,84 | 100' | 65 | 29,8 | 5,0" | 0,87 |
1.112CL030 | 3 | 3,31 | 100' | 55 | 29,8 | 8,0" | 1,05 |
1.112CL040 | 4 | 4,45 | 100' | 50 | 29,8 | 10,0" | 1,80 |
